Section 4 Configure

Step 6 Ensure that the toggle checkbox

Enable

, which is

by default, remains

On.

Step 7 Click

Add

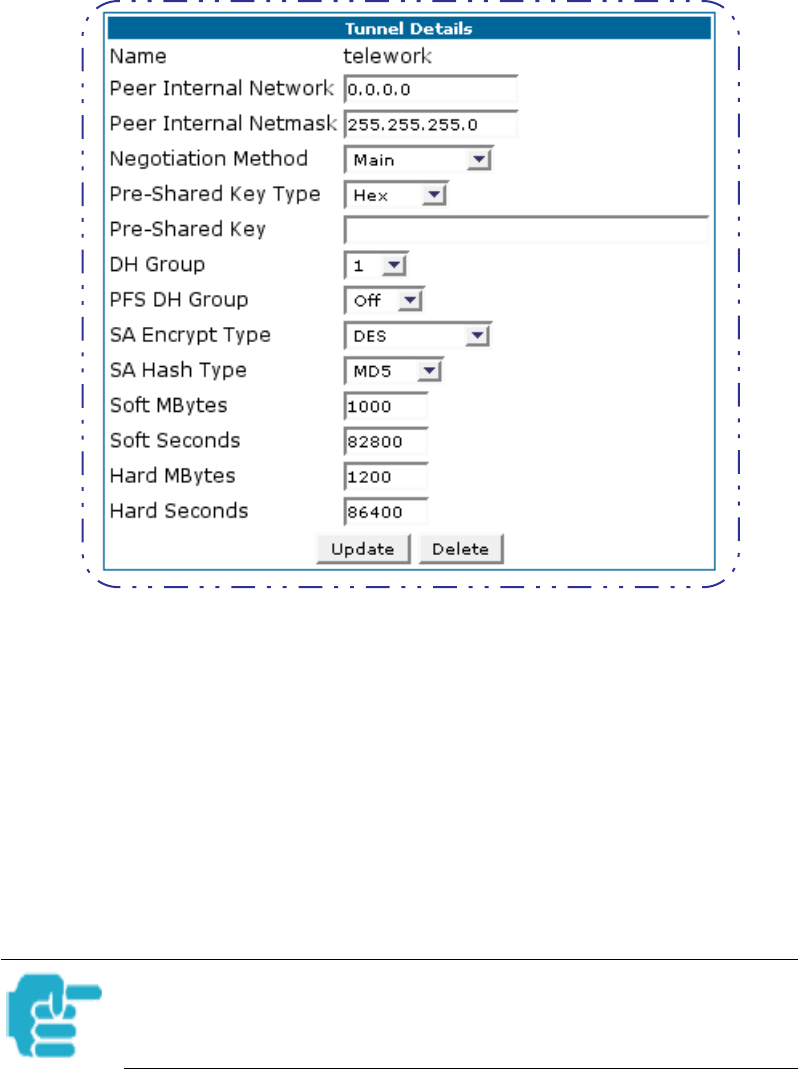

The Tunnel Details page appears.

Task 5: Make the Tunnel Details entries

Use the following steps:

Step 1 Enter or select the required settings.

Step 2 Click

Update

. The

Alert

button appears.

Step 3 Click the

Alert

button.

Step 4 Click

Save and Restart

Your SafeHarbour IPSec VPN tunnel is fully conﬁgured.

Tunnel sessions can only be initiated from the LAN client side.
